概述
Dimension labs offers a variety of fixed optical mounting brackets that can accommodate many standard sizes for applications that do not require dynamic adjustment. We also offer ultra stable low drift series fixed optical mounting brackets, suitable for applications that require high stability.
Threaded Fixed Lens Mounting Seat
characteristic: • Equipped with internal threads, it can install various optical components ranging from Ø 5mm to Ø 4in; • The M4 threaded hole at the bottom allows for direct installation of connecting rods; • Includes compatible snap rings for installing optical components; Dimension labs' threaded fixed lens mounting bracket is a standard mounting bracket with internal threads that can accommodate various optical components ranging from Ø 5mm to Ø 4in, or optical components with the same specifications of external threads. The internal threads are deep enough to accommodate the vast majority of optical components. The bottom has M4 threaded holes for direct installation of connecting rods.
已选0件物料，总价(含税)：￥0.00

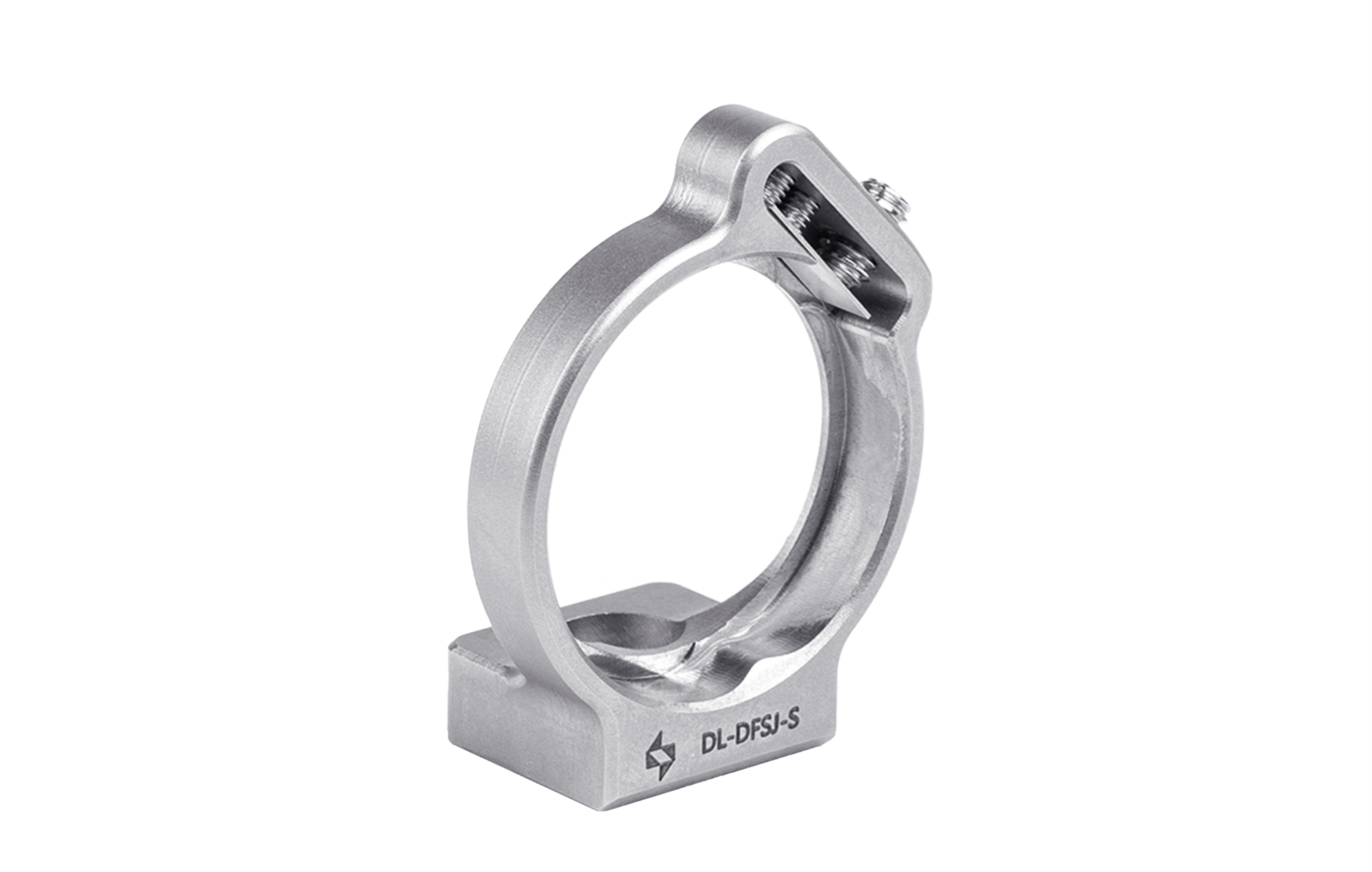

Jackscrew Fixed Lens Mounting Seat
characteristic: • Can directly install Ø 1 inch optical components with a maximum thickness of 3.6mm (0.14in); • M4 nylon top screw fixed optical components, with limit holes providing stable contact; • The M4 threaded hole at the bottom allows for direct installation of connecting rods; The Jackscrew Fixed Lens Mounting Seat of Dimension labs is used to install reflectors or other optical components. The center hole is a Ø 1-inch limit hole, providing stable contact between two wires. The top M4 nylon head can be locked with a top screw to fix it. The M4 threaded hole at the bottom allows for direct installation of connecting rods.
已选0件物料，总价(含税)：￥0.00
